Daybreak Technomech
SMART CONVEYING TECHNOLOGY
IN A FLASH
Smart Conveying Technology (SCT) means quick maintenance, significantly reduced life cycle costs and the shortest maintenance downtime. The design of SCT enables the rotor/stator sealing line to be adjusted to suit the application and compensate for wear, leading to more than double the lifetime of the rotor and stator. SCT also shortens the maintenance time on the rotor and stator by up to 85%. SEEPEX pumps with SCT are successfully used in virtually all industries, applications and media. The patented SEEPEX 1-stage design innovation has won numerous awards. In addition to the well-established 1-stage design for pressures up to 4 bar, SCT is also available in a 2-stage design for pressures up to 8 bar.
PROPERTIES & BENEFITS
- Quick maintenance, easy handling during assembly/disassembly
- Integrated tensioning device extends the rotor and stator's life by up to 200%
- Reduces maintenance time by up to 85%
- High productivity due to less maintenance downtime
- Significantly reduced life cycle costs
- Ease of maintenance: due to the two-piece Smart Stator and quick release Smart Rotor, which leaves the joint in place and eliminates the need to remove pipe work
- Small footprint for all service activities: no space required for stator dismantling
- Environmentally friendly: separate disposal of elastomer and steel components
STANDARD PUMP
THE BASIS
Product group N pumps are the basis for SEEPEX progressive cavity pumps. They are used in almost all industrial sectors and convey low to highly viscous media with or without solids. Those benefits along with others ensure the pump's economical operation.
PROPERTIES & BENEFITS
- Various rotor/stator geometries (conventional, 6L and Tricam geometry)
- Low pulsation, uniform flow
- High self-priming capabilities even with a mixture of liquid and air or gas up to a 9 meter water column
- Numerous installation options
- Large spherical entrance port
- Reversible rotation and flow
KEY FACTS
| CONVEYING CAPACITY | PRESSURE |
| 30 L/H - 500 M3/H | up to 96 BAR |
| 0.132 - 2,200 USGPM | 1400 PSI |
METERING PUMP
TO THE EXACT DROP
SEEPEX metering pumps achieve a metering accuracy of ±1%. They're used wherever low to highly viscous media, media containing solids and chemically corrosive media are processed and all with low pulsation and to the exact drop.
PROPERTIES & BENEFITS
- Modular system for quick and easy conversion
- Low pulsation pumping
- High metering accuracy (deviation ±1%)
- Easy maintenance due to the plug-in connection
- Material combinations available for all conveying products
- Multiple drive combinations possible
KEY FACTS
| CONVEYING CAPACITY | PRESSURE |
| 0.2 L/H - 1,000 L/H | up to 24 BAR |
| 0.053 L/H - 264 USGPM | 350 PSI |
OPEN HOPPER PUMP
FOR VISCOUS PRODUCTS
SEEPEX open hopper pumps handle viscous to semi-solid products with low or no flowability. They come in 9 ranges with multiple variations within each range and are suitable for nearly all industrial sectors.
PROPERTIES & BENEFITS
- Various rotor/stator geometries (conventional, 6L and Tricam geometry)
- Low pulsation, uniform flow
- High self-priming capabilities even with a mixture of liquid and air or gas up to a 9 meter water column
- Numerous installation options
- Large spherical entrance port
- Reversible rotation and flow
KEY FACTS
| CONVEYING CAPACITY | PRESSURE |
| 50 L/H - 500 M3/H | up to 36 BAR |
| 0.220 - 2,200 USGPM | 525 PSI |

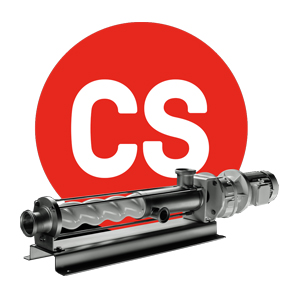

CS FOOD PUMP
ABSOLUTELY CLEAN
SEEPEX food pumps are used in the pharmaceutical, food, cosmetic and chemical industries or wherever a clean, sterile and hygienic atmosphere is needed. They comply with the most stringent hygiene regulations like FDA, 3-A Sanitary Standards and EHEDG and are also maintenance-friendly.
PROPERTIES & BENEFITS
- High product safety: stator material and secondary seals are FDA approved (Food and Drug Administration, USA)
- CIP (Clean In Place) with high velocity flow in the suction casing
- US 3-A Sanitary Standards and EHEDG compliance
- Particularly easy to maintain due to easy-to-assemble joints along with the plug-in connection between the rotating unit and drive
- No special tools needed for assembly/disassembly
- Optimized, dead-space-free pump casing prevents product build-up
- High-quality casing surfaces and the rotating internal parts ensure residue-free cleaning
- Multiple mechanical seal options ensure hygienic shaft sealing
- SIP (Sterilization In Place) with superheated steam
KEY FACTS
| CONVEYING CAPACITY | PRESSURE |
| 30 L/H - 130 M3/H | up to 24 BAR |
| 0.132 - 572 USGPM | 350 PSI |
SEMI-SUBMERSIBLE PUMP
POISED TO DIVE
SEEPEX semi-submersible pumps drain full containers, basins and barrels. They convey abrasive or corrosive conveying products with low to high viscosity. Individually sized and designed for the application, they are easy to maintain and have low operating costs. Overall, our semi-submersible pumps are a cost-effective alternative to other pump systems.
PROPERTIES & BENEFITS
- Low pulsation, uniform flow
- Variable submersible depths
- Increases the available NPSH value (Net Positive Suction Head)
KEY FACTS
| CONVEYING CAPACITY | PRESSURE |
| 30 L/H - 300 M3/H | up to 12 BAR |
| 0.132 - 1,320 USGPM | 175 PSI |
WOBBLE PUMP
SIMPLE AND COMPACT
SEEPEX wobble-stator pumps work reliably in many industries. They efficiently transfer liquids of thin to moderate viscosities, even with a high solids content. In contrast to conventional progressive cavity pumps they have a rotating unit with only one joint, which is why the stator "wobbles."
PROPERTIES & BENEFITS
- High product safety: stator material and secondary seals are FDA approved (Food and Drug Administration, USA)
- CIP (Clean In Place) with high velocity flow in the suction casing
- US 3-A Sanitary Standards and EHEDG compliance
- Particularly easy to maintain due to easy-to-assemble joints along with the plug-in connection between the rotating unit and drive
- No special tools needed for assembly/disassembly
- Optimized, dead-space-free pump casing prevents product build-up
- High-quality casing surfaces and the rotating internal parts ensure residue-free cleaning
- Multiple mechanical seal options ensure hygienic shaft sealing
- SIP (Sterilization In Place) with superheated steam
KEY FACTS
| CONVEYING CAPACITY | PRESSURE |
| 10 M3/H | up to 4 BAR |
| 44 USGPM | 60 PSI |
MACERATOR
THE BIG MINIMIZER
SEEPEX macerators macerate the solid and fibrous components in pumped products. This increases operational safety, extends service life of downstream equipment and reduces operating costs. Our macerators work in municipal and industrial waste water sectors as well as in other industrial branches.
PROPERTIES & BENEFITS
- Flow rate: 8.8 – 660 USGPM (2 m³/h – 150 m³/h)
- Controlled macerating due to variable output speeds and shear plates with different-sized openings
- Easy maintenance due to simple replacement of the entire cutterhead assembly (cartridge)
- Maceration amount adjustable by flow rate, output speed and shear plate design
- Lower energy consumption compared to alternative macerating technologies
- Two ranges with two sizes each
CONTROL SYSTEMS
EVERYTHING "UNDER CONTROL"
SEEPEX control systems offer individualized conveying solutions, specific to customer processes. Standard functions are used to protect the pump and ensure reliability. We are your specialized source for standard or customized systems that can take you from development to installation and start-up.
PROPERTIES & BENEFITS
- Standardized control functions and electronics
- Network-capable compact control systems
- Development of customer-specific solutions
- Easy integration with a customer's existing DCS or SCADA system
- Customer-specific solution: We can develop a SEEPEX control system for your unique application. All you have to do is contact us and we'll be happy to prepare a best fit control offer for your conveying process.
