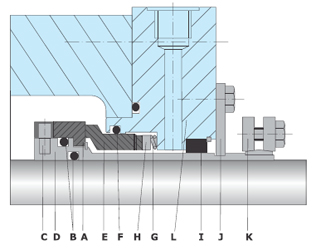

| Part No. | Description |
| A | Seal Face |
| B | O-Ring |
| C | Pin |
| D | Sleeve |
| E | Stationary Seat |
| F | O-Ring |
| G | Spring |
| H | Washer |
| I | Throttle Bush |
| J | Assembly Fixture |
| K | Shrink Disc |
| L | Gland |
| Seal Characteristics | Materials |
| Single Seal | Seal Faces : Carbon, SiC, Tung. Carbide |
| Balanced | Metal Parts : SS304, SS316, Hasetlloy-C, Alloy 20 |
| Cartridge Unit | O-rings : Viton, Nitrile |
| Independent of direction of rotation |
Type DB CT-100 is a compact cartridge balanced seal specially developed for handling slurries, sludge, thick syrups and polymerising fluids. In the cartridge construction the springs are isolated from the fluid enhancing the seal life. After detaching of the location plates provided, the seal can be easily installed straight away without setting measurements. Type CT-100 is a study, robust, seal capable of maintenance free runs for
Performance Range
- Shaft Diameter d1 : 20...150mm
- Pressure p : 25 bar (max)
- Temperature t : -20...180° C
- Velocity v : 20 m/sec
Applications
- Pulp&Paper
- Slurry pumps
- Sludge pumps
